Ekran
Parlaklık (ANSI lümen)
5100
Çözünürlük
4K UHD (3840×2160)
Doğal En/Boy Oranı
16:9
Kontrast Oranı (FOFO)
3000000:1
Ekran Rengi
30-(1,07 milyar renk)
Işık Kaynağı
Lazer
Işık Kaynağı Ömrü
a. Normal 20000 saat
Optik
Atım Oranı
0.81 ~0.89
Yakınlaştırma Oranı
1,1x
Lens
F/# =1.83 ~ 1.86 f= 8.6 ~ 9.4
Yansıtma Ofseti (Tam Yükseklik)
0%
Keystone Ayarı
3D, Dikey ± 40 derece; Yatay ± 40 derece; Rotation ± 40 derece
Dikey Lens Kaydırma
-60%~ +60%
Yatay Lens Kaydırma
-23%~ +23%
Resim
DCI-P3 Kapsamı
Yok
Rec.709 Kapsamı
92%
Resim Modları
3D, Parlak, DICOM SIM, Golf, İnfografik, Sunum, sRGB, Kullanıcı 1, Kullanıcı 2, Video
Uyumluluk
Giriş Gecikmesi
33,4 ms (1080P 60 Hz)
Çözünürlük Desteği
VGA (640 x 480) ila 4K UHD (3840 x 2160)
Yatay Frekans
15K~135KHz
Dikey Tarama Hızı
23~240Hz
G/Ç Arayüzü
PC girişi (D-sub 15pin)
Yok
Monitör çıkışı (D-sub 15pin)
Yok
HDMI girişi
(x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
Monitör çıkışı (HDMI)
Yok
Display Port
(x1)
LAN (RJ45)
(x1)
HDBaseT (RJ45)
(x1), Video/Ses
3G-SDI girişi
Yok
3D Sync girişi
(x1), VESA
3D Sync çıkışı
(x1), VESA
USB Type A
(x1), USB Type A-1 (2.0/Güç Kaynağı2.0A)
USB Type Mini B
Yok
USB Type C
Yok
RS232 girişi (DB-9pin)
(x1)
RS232 çıkışı (DB-9pin)
Yok
Kablolu Uzaktan Kumanda Girişi (3,5 mm Mini Jak)
(x1)
Kablolu Uzaktan Kumanda Çıkışı (3,5 mm Mini Jak)
(x1)
DC 12V Tetikleyici (3,5 mm Jak)
(x1)
Ses
Hoparlör
(x1), 10 W
Ses çıkışı (3,5 mm Mini Jak)
(x1)
HDMI Ses Dönüşü
Yes, eARC, Dolby Atmos
S/PDIF
Çoklu Kanal, RAW
Çevre
Çalışma Sıcaklığı
0~40℃
Güç Kaynağı
AC 100 ila 240 V, 50/60 Hz
Tipik Güç Tüketimi (110V)
440W
Bekleme Durumunda Güç Tüketimi
<0,5W
Ağ Bekleme Durumunda Güç Tüketimi
<2W
Akustik Gürültü (Tip./Eko.)(dB)
40/33
Aksesuarlar
Kablosuz USB donanım kilidi
Yok
Android TV dongle
Yok
Pil ile Uzaktan Kumanda
RCA011
Güç Kablosu (bölgeye göre)
x1 (1.8M)
VGA (D-sub 15pin) Kablosu
Yok
HDMI Kablo
1.8 m
Kullanım Kılavuzu CD'si
Yok
3D Gözlük
DGD5, (Opsiyonel)
Hızlı Başlangıç Kılavuzu
Yok
Kurulum Kılavuzu
1 (8L)
Garanti Belgesi (bölgeye göre)
Evet
Objektif kapağı
Yok
Toz Önleyici Filtre
Yok
Pil
Yok
Evrensel Tavana Montaj
CMG3, (Opsiyonel)
Duvar Montajı
Yok
Boyut ve Ağırlık
Boyutlar (GxYxD) (mm)
416x166x351
Net Ağırlık (kg)
7

Projeksiyon Sistemi
Projeksiyon Sistemi
DLP
Optical
Throw Ratio
0.81 ~ 0.89
Zoom Ratio
1.1x
Lens Control
Manual Zoom and Focus
Lens Shift
Manual lens shfit, V: ±60%; H: ±23%
Keystone Correction
3D keystone, V: ±40 degree; H: ±40 degree; R: ±40 degree
Projection Size
30" ~ 300"
Projection Offset
NA
Display
Projection System
DLP Single 0.47" 4K
DMD type
DC3 DMD Chip
Resolution
3840x2160 pixels
Brightness
5100 ANSI Lumens
Contrast Ratio*
3,000,000:1
Display Color
30 Bits (1.07 billion colors)
Aspect Ratio
Native 16:9 (5 aspect ratio selectable)
Light Source
Laser
Light Source Life*
20,000 hr
Audio
Built-in Speaker
10W x1
Special Feature
Feature
Large lens shift
Projector/ Remote Control ID Setting
HDBaseT
DisplayPort
S/PDIF
360 Degree Projection
Portrait
3D sync in and out
4K Upscaling
White Balance Adjustment
Security(anti-theft)
Kensington anti-theft lock slot x 1
Connectivity

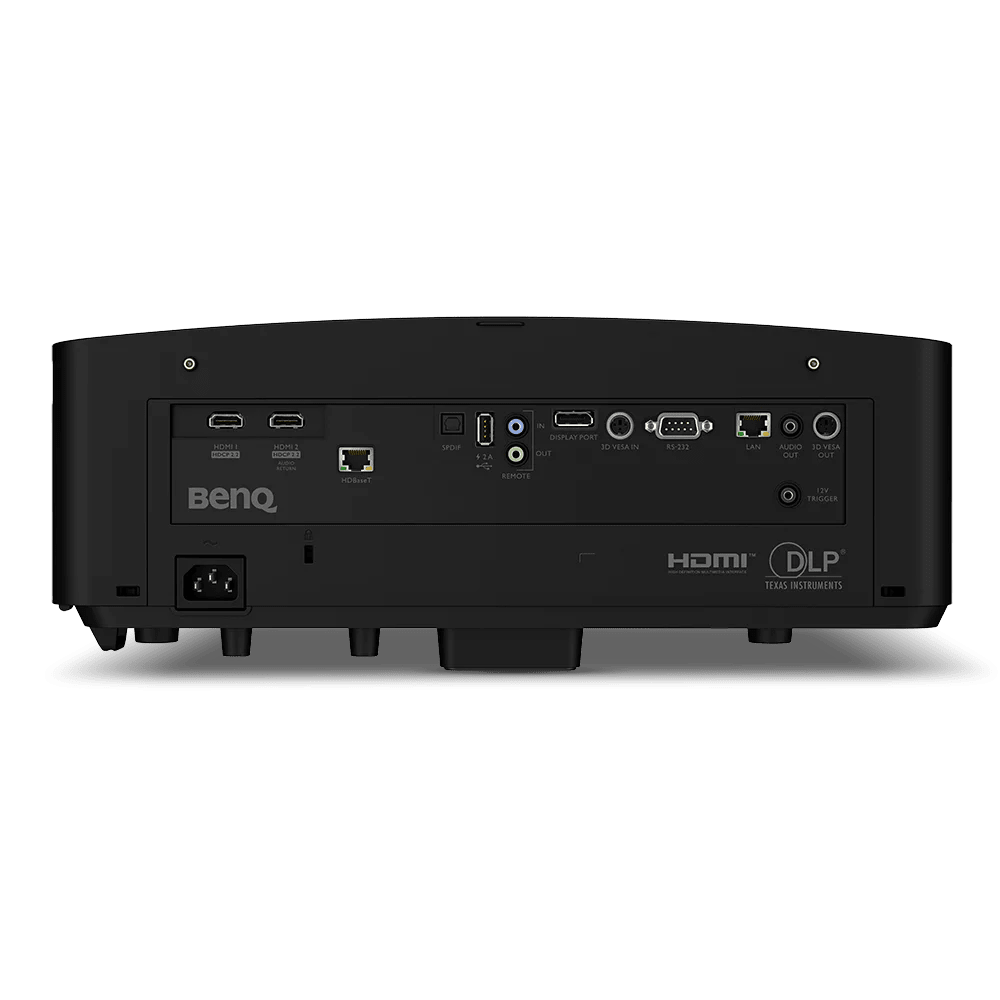

I/O PORT
HDMI (HDCP 2.2) x 2
USB TypeA(5V/2A power) x 1
HDBaseT x 1
Wired Remote in x 1
Wired Remote out x 1
3D Sync in x 1
3D Sync out x 1
RS232 In (D-sub 9pin, male) x 1
LAN Port(RJ45 for Network control) x 1
S/PDIF x 1
Audio out (mini jack) x 1
12V Trigger x 1
DispayPort x 1
IR Receiver(Front) x 1
IR Receiver(Top) x 1
Compatibility
Resolution Support
VGA (640 x 480) to 4K UHD (3840 x 2160) *RB-Reduced Blanking *4K input compatible
Horizontal Frequency
15K~135KHz
Vertical Scan Rate
23~240 Hz
HDTV Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Video Compatibility
NA
Power
Power Supply
100 ~ 240V AC
Power Consumption(Max/Normal/Eco)
Max 520W/Normal 425W/Eco 270W
Standby Power Comsumption
Normal < 0.5W, Network <2W
Dimension and Weight
Product Dimensions (WxHxD)
416 x 166 x 351 mm
Product Weight
7.0 Kg+/- 200g
Operation Condition
Noise Level(Normal/Eco)
40/33 dBA
Operating Temperature
0 ~ 40°C
Accessories
Accessories (Standard)
Power Cord
HDMI cable
Remote control (RCA011)
AAA Batteryx2
Installation Guide/Regulatory Statement(Combined)
Warranty card(by sku)
Accessories (Optional)
Ceiling mount (CMG3)
3D glasses
OSD/Launcher
On Screen Display /Launcher Language
Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian /Persian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese/ Vietnam (30 languages)
