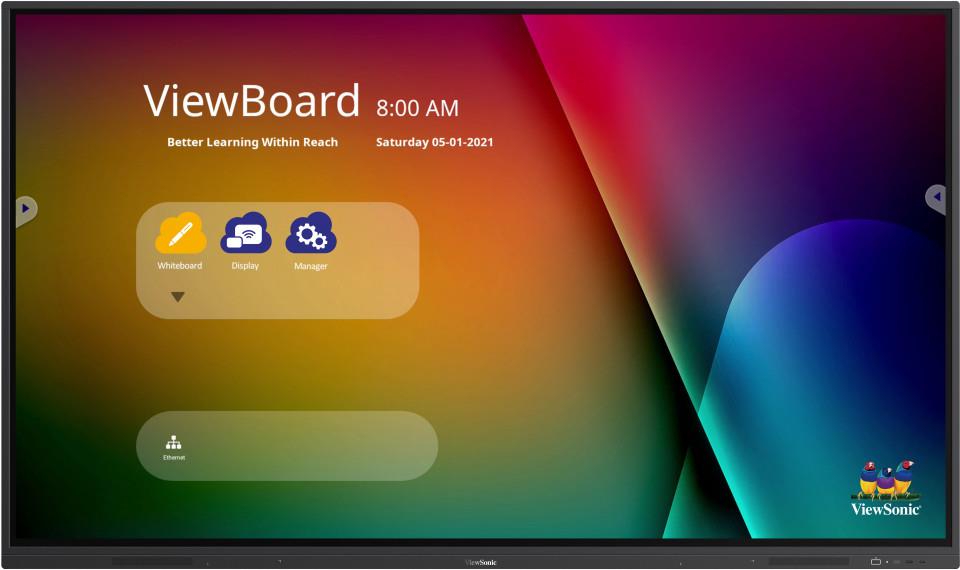

Viewsonic IFP8632-2

Panel Boyutu: 86"
Panel Türü: TFT LCD Module with DLED Backlight
Görüntü Alanı (mm): 1895.04(H) x 1065.96(V)mm
En Boy Oranı: 16:9
Çözünürlük: UHD 3840x2160(Pixels)
Renkler: 1.07B colours (8bit+FRC)
Parlaklık: 450 nits (typ.)
Kontrast Oranı: 4000:1
Tepki Süresi: 8ms
İzleme Açıları: H=178, V=178typ.
Arka Aydınlatma Ömrü: 50,000 Hours (Min)
Yüzey Kaplama: Hardness: 9H Anti-glare coating
Yön: Landscape
Disclaimer: 50,000 hours backlight life at 8 hours of use per day

İşlemci: ARM quad-core Cortex-A55
RAM: 4GB DDR4
Depolama: 32 GB

Tip/ Teknoloji: Ultra Fine Touch Technology
Dokunmatik Nokta: 20 points touch, 2 points writing

HDMI: HDMI 2.0 x2 (3840x2160 @60Hz)
RGB / VGA: x1
Ses: x1
RS232: x1
OPS: x1 (Optional Intel Standard OPS)
WiFi: x1

Ses: x1

RJ45​: x1

Tip A: USB2.0 Front x2; Side x2
Tip B: x1 for HDMI/VGA touch

12W x 2

Yes

Android 9

Temel Not Alma Yazılımı: myViewBoard Whiteboard
Profesyonel Not Alma Yazılımı: myViewBoard Whiteboard for Windows (Embedded in optional Windows Slot-in PC)
Wireless Presentation: myViewBoard Display & ViewBoard Cast​

All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
Tek Tıkla Bulut Sürücüsüne: 10/100M for Android & Slot-in PC
Light Sensor: Yes

Voltaj: 162V-264V +/- 10%
Tüketim: On:314W(typ.)
Off: ≤ 0.5W

Duvara Monte (VESA® ): 800x600

Sıcaklık (º C): 0°C to 40°C
Nem: 10% ~ 90% RH non-condensing

Fiziksel (inç / mm): 1957×1160×87 mm / 77x45.7x34.2 inch
Paket (inç / mm): 2112×280×1283 mm / 83.1x11x50.5 inch

Net (lb / kg): 66.7kg/147lb
Brüt (lb / kg): 84.2kg/185.6lb

EMC/CE , CB/LVD, GOST-R / EAC, FAC, RCM, BIS, ECAS, LBL (Low Blue Light Certification), RoHS, REACH, SCIP, WEEE, TPCH, Packing waste, CA65, Green BOM, ErP-Eco

1. Power cord / 2.Remote control with AAA battery / 3.USB touch cable / 4. Touch pen x 2 / 5. Quick Start Guide + Compliance statement / 6. RS232 adaptor / 7. Screw x 4 ( wall mount 4) / 8. HDMI cable/9. Clamp x5 / 10. Camera plate x1

VPC12-WPO/VPC25/VPC27 series
